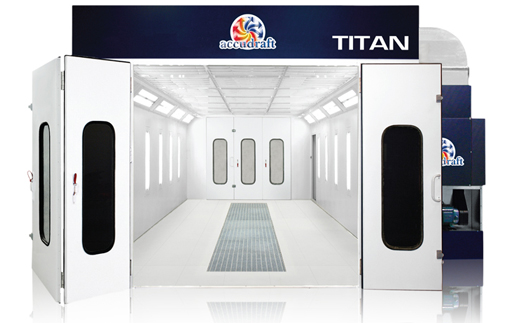

Titan Downdraft
Manufacturer: Accudraft
Part #: Titan
The Accudraft TITAN™ is a high powered downdraft paint booth specifically designed for any current or future waterborne facility. Using a 15 H.P. 1.5 Million BTU direct fire heating system with 20,000 CFM, the TITAN™ delivers airflow & heat specifications recommended by waterborne paint manufacturers. All Accudraft TITAN™ models come standard with the EnergySmart™ VFD package for the ultimate in electrical energy savings. The TITAN™ uses dual mode technology allowing the system to switch between water-based or solvent-based modes on the fly, making you able to paint today while being ready for tomorrow.
Downdraft Paint Booth Airflow Concept
The biggest advantage to a downdraft paint booth is cleanliness. Air is drawn around the vehicle or painted object and exhausted from underneath the object. Downdraft paint booths pull paint over-spray and contaminants downward and away from the painted object no matter where the painter is spraying. The risk of dust and over-spray contamination in the finish is greatly reduced and the painter is also in a much healthier and safer environment.
KD™ Series Integrated Air Makeup System
The KD™ Series air makeup unit is a completely integrated intake, heat, and exhaust system designed for high production downdraft paint booths. Forward curve and backward inclined turbines provide powerful airflow through the paint booth and recycled direct fire heating provides fast heating with maximum energy efficiency. Painters can put more jobs through the paint booth per hour and generate heavier profits for your business.
SmartPad™ Digital Controls
Accudraft’s SmartPad™ digital control panel provides the user with all process information and settings in one compact and easy to read paint booth control unit. Choose between solvent and waterborne paint modes before you start. All processes are then automatic for that type of paint. The SmartPad™ can also integrate Accudraft’s Xcelerator™ for the ultimate in paint drying speed.
Highlights
  • Downdraft Paint Booth System
  • Dual Skin Paint Booth and Air Makeup Construction
  • Paint Booth & air Makeup Group Come in Your Choice of Exterior Color
  • Ultra-WhiteTM Non Reflective Vinyl Paint Booth Workspace Interior
  • Paint booth main doors include integrated red locking handles
  • All paint booth doors include full-height observation windows with wire-mesh reinforcement
  • 20,000 CFM
  • Dual mode technology for drying solvent or waterborne paints
  • Reduces paint booth energy costs by up to 50%
  • EnergySmart™ variable frequency drive system standard
  • 1.5 Million Btu/hr Heating system. Natural Gas or Propane
  • Full heat recirculation (Minimum 15% fresh air by code)
