Welding and brazing of aluminum alloys, galvanized sheet metal, stainless, and high-strength steel.
Double Pulse feature - mechanically and electrically controls the welding parameters to achieve a TIG-looking weld bead.
Synergic pulsed welder with full set of welding programs for easy use.
- Synergic pulsed technolgy is required by most OEMs for aluminum welding. Includes a complete set of synergic programs in memory for brazing, welding and aluminum wire.
- Inverter technology enables precision electronic control of output power for better quality welds.
- GREEN technology - Integrated Power Factor Correction (PFC) technology reduces input power by avoiding energy waste found in most electronic-based equipment and ultimately reduces operating costs. High Harmonic Distortion is hard on the power grid and contains non-working energy, which is costly & environmentally wasteful.

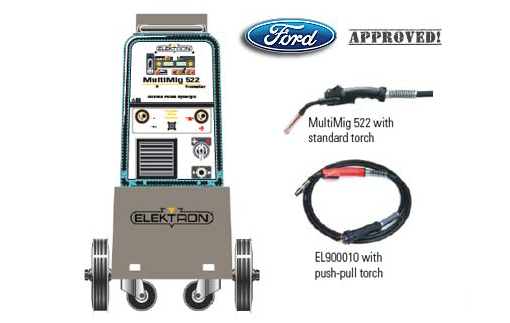

- Two types of torches can be used with MultiMig power source - a standard MIG torch or the unique push-pull torch. The Elektron push-pull system torch has an up-down digital current adjust at your finger tip, thanks to a feeder built into the grip. The very small and light weight torch (no bulky spool-gun) enables real-time control of welding process by control of the wire feed speed and current level. The push-pull system corrects many of the problems encountered when feeding and welding soft aluminum wire, down to 0.6mm.
- Many programmable options are available to customize the unit operation to meet most working conditions. Options include: Arc Length, 2 time, 4 time, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc. Can operate in pulse synergic, synergic, or conventional mode.
- Weight: 65.3 lbs
- Dimensions: 23.2 x 37.5 x 395h
